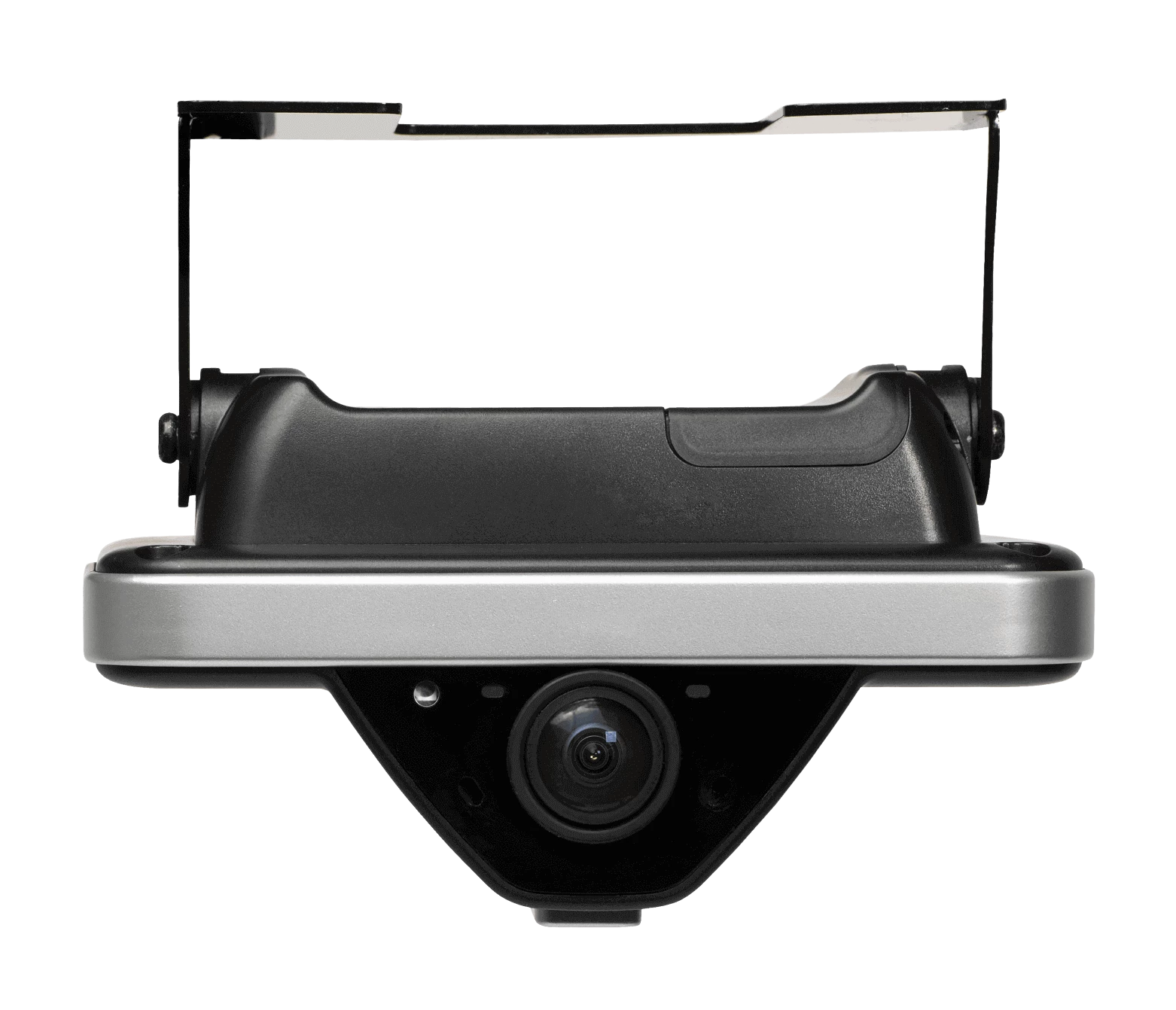

Smart Dashcam - Dual

Intelligent Driver Safety

A new phase of intelligent driver safety is here. Where artificial intelligence turns video into meaningful insight, empowering you to drive change through personalized coaching and driver rewards.

Powerful sensors and video AI enable the Smart Dashcam - Dual to review every minute of footage in real-time so you can understand driver behavior like never before. With AI doing the heavy lifting you can identify actions to reward, areas to improve and create the most accurate driver scores.

The driver app digitizes coaching and creates a balanced approach to performance tracking that you and your drivers can trust. With real-time visibility into scores, coaching events and videos you can launch a safety program that encourages participation and accelerates improvement. Explore the solution in the video below.

Key Product Features

  • Dual 1080p 30fps high-definition cameras with built-in low-ambient light sensor and wide-angle lenses that capture a large degree of the road environment at any time of the day and night.
  • Video AI reviews every minute of driving time to provide insight into positive behaviors and opportunities for improvement.
  • Wide range of alerts including collision avoidance, distracted driving, phone use (talk and text), drowsy driving, seatbelt use, following distance, posted speed limit, traffic light violations and stop sign violations.
  • Compound event reporting provides additional context, examples include hard brake after lane change or following to close when distracted.
  • Event dashboard shows driver scores and recorded events alongside video footage. The inbuilt coaching function enables you to instantly share events with your drivers via the driver app.
  • Real-time audio alerts help drivers instantly correct dangerous behaviors and avoid collisions.
  • Built-in scorecard system provides visibility into fleet wide and individual driver scores.
  • Dedicated smartphone app for drivers to review performance and footage, along with feedback and coaching on how to improve safety and performance.

Smart Dashcam - Dual

Technical Specifications

Smart Dashcam

CPU: 64-Bit ARM® Octa Core

GPU: Qualcomm Deep Learning Processor

Video Encoding: 1080p H.265

Video Format:
HD videos for limited time (customisable)
SD lower resolution for long-term storage

Sensors:
IMU - Accelerometer + Gyro + Compass, Temperature, Ambient Light

Smart Dashcam

Pixel Size:
Outward - 2.8μm OmniBSI-2 pixel
Inward - 3μm x 3μm

Resolution:
Outward - 1920 x 1080p / 30fps
Inward - 1920 x 1080p / 30fps

Dynamic Range:
Outward - >90dB HDR
Inward - 72dB

Field of View:
Outward - 74° (Horizontal)  57° (Vertical)  90° (Diagonal)
Inward - 148° (Horizontal) 80° (Vertical) 168° (Diagonal)

Construction:
Outward - 6G - Visible
Inward - 6G + IR Filter (Dual Band)

Smart Dashcam

Storage: 64GB, 128GB or 256GB eMMC

Memory: 2GB

Smart Dashcam

Supported Bands:
LTE-4G Cat 4 B1, B3, B5, B7, B8, B28
3G-B1, B5, B8

SIM Connector: Yes, micro SIM

Wi-Fi: Yes, 802.11 ac

Bluetooth: Yes, v4.0

GPS Receiver Antenna: Yes, True GPS Antenna

Connectors:
USB (with OTG support)
Power Jack
MicroSD

Audio: Integrated Microphone and Speaker for alerts

Smart Dashcam

Dimensions (LxWxH): 126mm x 71mm x 65mm

Colour, Case Material: Black, Polycarbonate (PC)

Power Cable Length / Thickness: 3 metres / 4.5mm

Weight:
Dual Camera - ​610grams
GPS / Wireless Module - 284grams

Compliance: ISO 16750-3, IEC 60068-2-64, RCM

LEDs: 2

Driver Alert Button: Yes

Smart Dashcam

Input Voltage: 10V-30V

Input Current (full operation): 12V / 2A

Max Power Consumption: 24W

Signals Input - High Voltage (positive): +17V

Signals Input - Low Voltage (negative): 0V

Operating Temperature: -20oC to +55oC

Shutdown Mode Power Consumption:
Current (A) 9mA @ 12V
Power (W) 108 mW
Average Power Consumption with 23.9mAh*

*The Smart Dashcam wakes periodically to perform health check

Smart Dashcam

Pulse Type: Half Sinusoidal

Accelerator: 50gm

Pulse Duration: 6ms

Number of Shocks per axis: 20 Nos. (10 positive and 10 negative)
