Battery-Powered Asset Tracking

Asset visibility in the field and in the warehouse

Teletrac Navman’s AT401 is a GPS-enabled indoor and outdoor telematics device designed to track both powered and unpowered assets. With its compact size, rugged housing and extended battery life, the AT401 ensures reliable asset tracking, whether inside or outside, throughout the day whenever movement occurs.

The AT401 is easy to self-install and instantly connects to theTN360 platform, giving you the visibility to simplify asset management. You can customize movement alerts with stationary-to-move, move-to-stationary, or timed modes, and in case of theft, activate 'Recovery Mode' to help recover stolen assets. Its replaceable batteries ensure long-term usage without the need to purchase a new tracker.

With the AT401 you will enhance visibility into asset location and usage, so you can improve utilization across projects and sites, reducing hire costs and project delays. The TN360 platform also includes digital maintenance and inspection applications so you can streamline maintenance programs and save time locating and maintaining equipment.

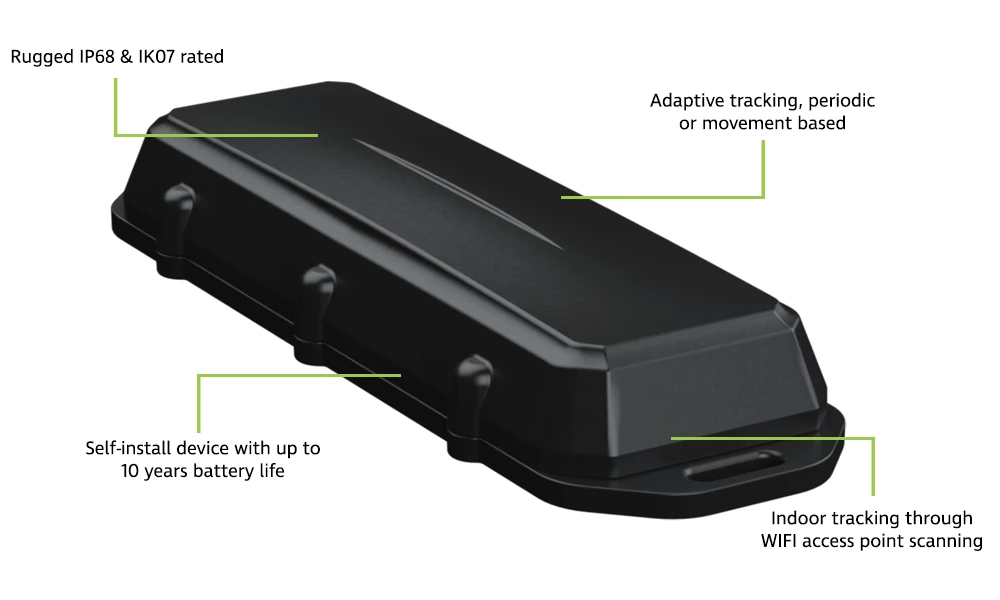

Battery-Powered Asset Tracker - AT401

AT401 Features and Benefits

Track unpowered assets inside and outside of your facilities

  • Smart tracking of indoor or outdoor powered or unpowered assets - see your entire fleet in one system.
  • Indoor asset location using Wi-Fi access point scanning
  • Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal.
  • Extended battery life for each device across the fleet depending on the set reporting period.
  • Get alerts when batteries are running low or at critical level.
  • Batteries can be easily replaced extending the lifespan of the tracking device.
  • Ability to self-install across your fleet, with a device where you can replace long-life batteries for a low cost of ownership.
  • Receive alerts on equipment events such as movement from sites after hours indicating potential theft.
  • Rugged and waterproof IP67 and IK07 rated housing offers a discrete and highly durable form-factor that suits a wide range of asset types and sizes.
  • Define yards and job sites through geofences and report on equipment location, activity, and utilization by site.

Long Battery Life

Optimized battery performance giving you years of battery life

Ruggedized Device

IP67 / IK07 rated and built to withstand tough environments

Adaptive Tracking

Flexible update rates based on movement or scheduled updates

Indoor & Outdoor

Wi-Fi access point scanning for indoor location tracking

Technical Specifications

See why this device is right for you

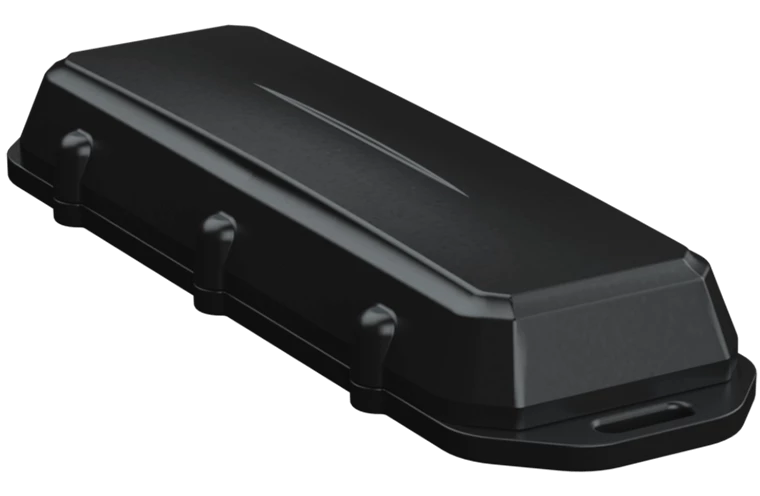

AT401 760X496 No Call

Ratings: IP68 & IK07

Certifications:
USA & Canada :FCC & ISED, Prop65
European Union: CE, REACH, RoHS
United Kingdom: UKCA
Australia & New Zealand: ACMA
South Africa: ICASA
Others : Screw Housing: IP, IK, Clip Housing: IP, IK

Connectivity: Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands

Supported Bands: Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66

SIM Size: Internal Nano 4FF SIM

Chipset: Semtech LR1110

Environment: Indoor/Outdoor

GNSS Scanning: Concurrent GPS/BeiDou

WiFi Location Scanning: Indoor asset location using Wi-Fi access point scanning

Cell Tower Location: Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal

Location Accuracy:
~5m-80m with GNSS scanning in open areas
~10m-100m with Wi-Fi in urban areas
~250m-1km Cell Tower Geolocation - dependent on number of nearby towers
* Results vary depending on real world conditions

Heartbeat: 1 report every 12 hours, for a total of 2 pings per 24-hour cycle

Movement, Stationary-to-Move (S2M): Reports when assets move more that ~20 meters.

Movement, Move-to-Stationary (M2S): Reports when a moving asset stops for more than 5 minutes

Supply Voltage: 2.2 - 3.6V

Current Consumption (Sleep Mode): <10uA*, *Average current in lowest power configuration

Battery: 2 x AA. Batteries not included

Supported Battery Types: Alkaline
* Lithium (LiFeS2) – recommended for best performance
*Please dispose of Lithium batteries in a safe and responsible manner.

Once Daily Location Updates: 10 years

Movement-Based Location Updates: 5 years

Hourly Location Updates: 3 years

Accelerometer: 3-Axis Accelerometer to detect movement, high G-force events, and more

Operating Temperature: -30°C to +60°C

Record Storage: Internal flash memory stores approximately 1400 records if device is out of cellular coverage

Antenna: Internal cellular, GPS and WiFi antennas

LEDs: Diagnostic LED indicates operation status

Size: 149mm Height, 51mm Width, 21mm Depth

Weight: 430g

Firmware Updates: Over-the-air (OTA)

Installation: Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.

Supported Platforms: DIRECTOR, TN360
