MT801
Deliver powerful apps to your drivers through a ruggedized device

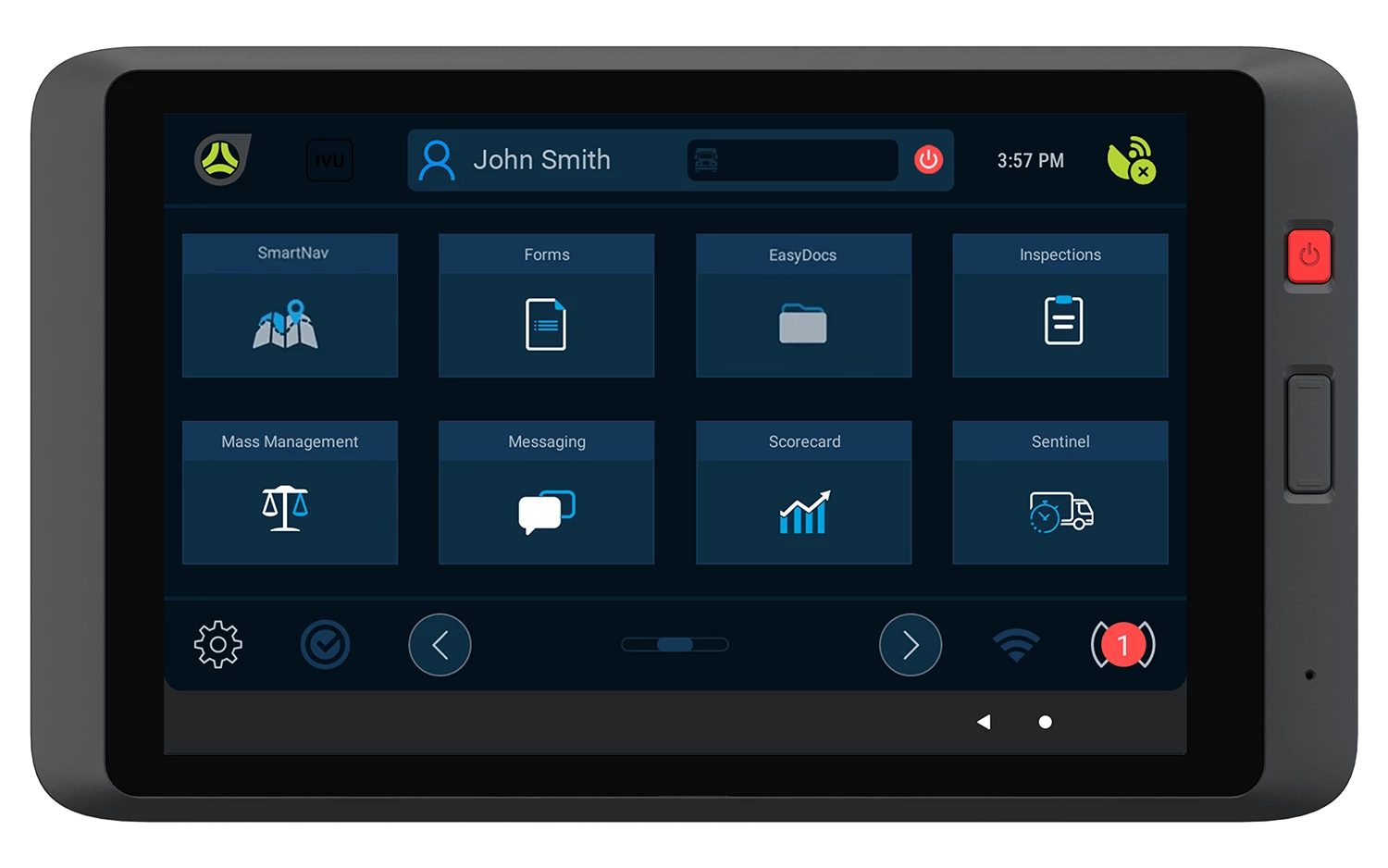

Teletrac Navman’s MT801 is a rugged 8” tablet designed for professional drivers that delivers real-time information through digital applications on an easy-to-use managed operating system. When installed in the cabin of heavy-vehicles, the digital applications display key information for the driver to complete their tasks, reducing tedious paper-based and manual processes.
The MT801 is part of the TN360 fleet management platform that brings telematics data, video telematics capabilities and fleet workflow into one location. The AI enabled solution empowers teams with the insight to improve driver behavior, streamline operations and advance sustainability.
Safety & Risk Management
Build proactive safety and vehicle maintenance programs
Driver & Job Workflow
Digitally transform with applications that enable your team to complete tasks with ease
Feedback
Help drivers stay on track with routing, compliance, and driver safety alerts.
All-in-one
Streamline operations with safety, regulatory, productivity and 3rd party data in a single interface
Key Features
What sets the MT801 apart
- Ruggedized IP54 device designed to handle tough working conditions from rough terrain, country roads and construction sites
- Part of an integrated platform that delivers a range of diverse solutions through a cloud-based fleet management system
- Simplified digital workflow that aggregates data from driver inputs, 3rd party integrations and the TN360 platform
- Displays up-to-date driver performance & safety metrics to help improve driver behavior
- Provides real-time alerts to help your drivers make better decisions on the road
- Delivers actionable information to help meet compliance and safety regulations
- All calculations (including fatigue) completed on the device to ensure that drivers always have access to up-to-date information, even when they’re outside communication range
- Provides a means to communicate instantly through text between the driver and the back-office
Technical Specifications
See why the MT801 is the right device for you
Certifications: CE/CB, FCC/IC, RCM, BQB, E-mark, PTCRB, EN 18031, ROHS, WEEE, Carrier: Verizon, AT&T
Rating: IP54 and MIL-STD-810G 1.2m/4ft drop resistant (1.8m/6ft with protective caps) Vibration & Shock resistance: SAE J1455 standard, up to 20G peak
LTE: North America | LTE FDD Band 2/4/5/7/12/13/14/ 17/25/26/66/71
Wifi: IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Bluetooth: Bluetooth® 5.1 BLE
GNSS: GPS (including AGPS) + GLONASS, simultaneously tracking, dual frequency (L1 + L5)
SIM: Dual Nano SIM Slots
CPU: Qualcomm® QCM4290, Octa core, up to 2.0GHz
Memory/Storage: 4GB RAM / 64GB internal storage (Expandable to 512GB via Micro SD card storage)*
Display: 8” 1280x800 IPS (600 nits, 85° view angle)
Touchscreen:
Capacitive multi-touch with optical bonding, glove support & water resistant, anti-glare coating
Cameras: Rear* 8 megapixels, auto focus with flash LED
Mic/Speaker: Built-in mic x2 (supports noise cancellation); Built-in speaker x1
I/O Ports: 24-pin pogo pin connector (charging & data transmission) USB Type-C 2.0 (supports OTG)
Sensors: Accelerometer (G sensor) - auto rotation, Gyro, eCompass, ambient light sensor, vibration motor | NFC:
MiFare®, FeliCa | HF RFID: ISO14443 A&B, ISO15693
Buttons: Front: power, programmable button x2 (default: volume +/-)
Soft buttons: on screen Android™ navigation keys
Battery: 4,000mAh Li-Po replaceable battery, with tamperproof security screws Battery life up to 8 hours based on
typical usage conditions2
Operational Voltage: 9˜32V wide DC input
Humidity/Altitude: 0 ˜ 95%, non-condensing, Operating: 0˜4,572m (15,000ft)
Current Consumption: Awake, idle ~250mA, Battery Charging ~1A
Operating Temp: -20° to +60°C (-4° to +140°F) operating temperature
Dimensions: 132.4 x 225.5 x 20.5 mm
Weight: 490g
Firmware updates: Over the Air (OTA)
Applications: TN360 enabled applications, BYOA apps may be available
Supported Platform(s): TN360
